>> Principle

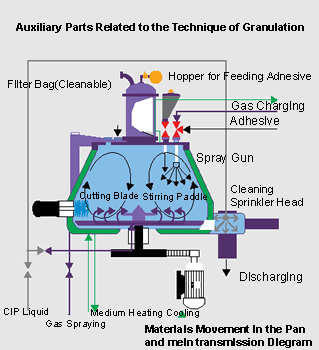

The powder raw material and adhesive in a cylinder are fully
mixed at the bottom to become a humid soft material. Then it is
cut by high-speed cutter and become uniform granules.
>>Features

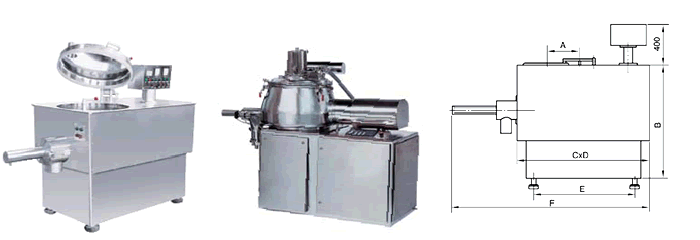

The machine adopts horizontal cylinder structure, its structure
reasonable.
Air filled seal shaft for to drive. When washing , it can be
changed to water.
Fluidized Granulation, the granule is around ball shape. Its
flow ability is good.
Compared to traditional process, 25% of adhesive can be
reduced and the drying time is short.
The dry mixing time is 2 minutes and the granulating time is
1-4 minutes. Compared to the traditional process , 4-5 times of
efficiency is raised.
Dry mixing ,humid mixing and granulating are finished in the
same sealed container. It is in conformity with the requirements
of GMP.
The whole operation has strict safe and protective measures.
Jacket type might be adopted on request
