 YZG/FZG Series Vacuum Dryer
>> Technical parameters
| Name/specification |
YZG-600 |
YZG-100 |
YZG-1400 |
FZG-15 |
| Interior size of chamber |
φ600×976 |
φ1000×1527 |
φ1400×2054 |
1500×1220×1400 |
| Exterior size of chamber |
1153×810×1020 |
1740×1226×1385 |
2386×1657×1800 |
2060×1513×1924 |
| Layers of baking shelf |
4 |
6 |
8 |
8 |
| Interval of baking shelf |
81 |
98 |
102 |
122 |
| Size of baking tray |
310×600×45 |
460×640×45 |
460×640×45 |
460×640×45 |
| Number of baking tray |
4 |
12 |
32 |
32 |
| Drying capacity (kg) |
8 |
24 |
64 |
64 |
| Permitted pressure inside the pipe of baking shelf(MPa) |
≤0.784 |
≤0.784 |
≤0.784 |
≤0.784 |
| Temperature inside chambe ℃ |
≤150 |
≤150 |
≤150 |
≤150 |
| Vacuum level inside chamber without load |
0.09-0.096 |
| Type and power of vacuum pump without condenser |
SK-1.5 4kw |
SK-3.5 5kw |
SK-6 11kw |
SK-6 11kw |
| Weight of drying chamber(kg) |
250 |
800 |
1000 |
2100 |

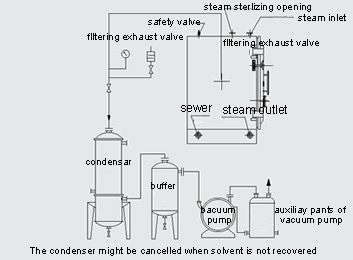

>> Flow chart
|
|
|
