 RLY Series Oil Combustion Hot Air Furnace
>> Descriptions
The fuel is burnt at firebox and the high temperature is produced. The quantity of heat will conduct to air to be heated through heat exchange device.Through heat exchange, the temperature of air is dropped to less than 250°C and the air will be discharged. The air to be heated is sent to hot air furnace through distribution blow fan. After absorbed heat to the rated value, the air will be sent from the vent of hot air. When the temperature of hot air reaches the rated upper limit, the burner can stop or turn to small fire automatically. When the temperature of hot air drops to the rated low limit, the burner can burn or turn to big fire automatically.
The furnace is widely used in Metal surface covering or coating, Medicine, Grain processing, Foodstuff, Wood processing, Textile , printing and dyeing,Chemical industry, Automobile and so on

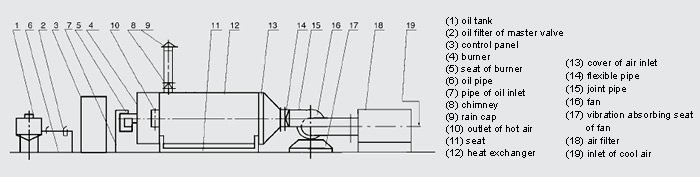

>> Schematic of installation
>> Technical parameters
Spec |
Combustion device spec |
Oil combustion heat supply kg/h |
Capacity104kcal/h |
Overall dimensionsL×W×Hmm |
Hot air openingL×W mm |
Total weightkg |
| RLY1 |
RIELLO.G3/DL3FS |
1.3-1.6 |
1 |
1200x1200x1600 |
Ф200 |
460 |
| RLY4 |
RIELLO.G10/DL10FS |
5-6.5 |
4 |
1700x1300x1600 |
Ф250 |
850 |
| RLY10 |
RIELLO.G20/DL23FS |
13-16 |
10 |
2300x1568x1870 |
Ф300 |
2200 |
| RLY20 |
PRESS 1G/DL34FS |
26-32 |
20 |
2800x1568x1870 |
Ф400 |
2670 |
| RLY30 |
RL50/DL55FT |
39-48 |
30 |
3400x1568x1870 |
Ф450 |
3060 |
| RLY40 |
RL70/DL75FT |
52-64 |
40 |
4440x1768x2070 |
Ф550 |
5600 |
| RLY60 |
RL100/DL100FT |
78-96 |
60 |
5140x1868x2070 |
Ф600 |
8460 |
| RLY100 |
PRESS 4G/DL120FT |
130-140 |
100 |
6440x2480x2300 |
550x600 |
12800 |
| RLY160 |
P300/DL250FT |
200-300/270 |
160 |
7470x2920x3480 |
750x900 |
15780 |
| RLY200 |
P300/DL300FT |
260-300 |
200 |
8175x2920x3480 |
750x900 |
18500 |
| RLY360 |
GI510 |
480-620 |
360 |
9300x2920x3480 |
|
21000 |
|
|
|
